In the world of PCB (Printed Circuit Board) fabrication, precision and efficiency are the two pillars upon which successful production rests. One of the most critical stages in this process is the exposure of the photoresist layer, where the design patterns of the circuit are transferred to the board. A wide range of exposure machines exists, but CCD Auto Alignment Exposure Machines are rapidly becoming the go-to technology for PCB manufacturers due to their high precision, speed, and versatility.
These machines utilize CCD (Charge-Coupled Device) sensors to achieve automatic alignment and exposure, significantly improving the quality and consistency of the final product. With advancements in technology, various types of CCD exposure machines have emerged, including semi-automatic exposure machines, 4 CCD alignment exposure machines, and CCD automatic alignment double-sided exposure machines. Each of these innovations offers unique advantages tailored to different PCB manufacturing needs.
In this article, we’ll explore the different types of CCD Auto Alignment Exposure Machines, their working principles, advantages, and the role they play in improving the efficiency of PCB production.
What Is a CCD Auto Alignment Exposure Machine?

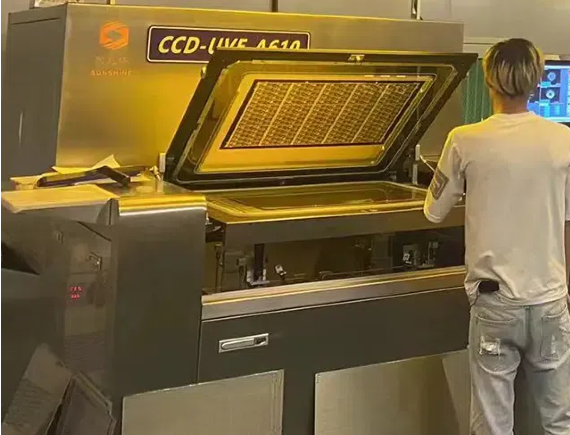

A CCD Auto Alignment Exposure Machine is a high-tech device designed to expose a photoresist-coated PCB to UV light in a precise and controlled manner. The machine uses CCD sensors for alignment, ensuring that the circuit pattern is transferred onto the board with exceptional accuracy. These sensors automatically detect any misalignment between the PCB and the mask, making adjustments as necessary to ensure the exposure is precise.
The exposure process involves shining light through a photomask, which contains the pattern of the circuit. The light hardens the photoresist where it hits, while areas shielded by the mask remain unexposed. Afterward, the exposed sections of the photoresist are developed, leaving behind a pattern that corresponds to the desired circuit layout. This pattern will guide the etching and plating processes that follow in the PCB manufacturing cycle.
The key feature that sets CCD Auto Alignment Exposure Machines apart from other exposure systems is their ability to automatically adjust for alignment errors. Unlike traditional systems that require manual alignment, CCD-based systems make the process much faster and more precise, which is crucial for high-volume PCB production.
Types of CCD Auto Alignment Exposure Machines
1. Semi-Automatic Exposure Machines
While semi-automatic exposure machines don’t feature the full automation of a CCD Auto Alignment system, they still offer significant improvements over fully manual exposure methods. These machines require some degree of manual setup but incorporate automated elements such as exposure control and alignment adjustments.
In semi-automatic exposure machines, the operator typically loads the PCB and sets up the mask, while the system automatically adjusts the exposure parameters such as light intensity, duration, and alignment. These machines are ideal for manufacturers who produce a moderate volume of PCBs and need a balance between cost and efficiency.
Semi-automatic machines often use a CCD sensor for basic alignment checks, making them more efficient than older mechanical systems. Although they require more manual involvement than fully automated machines, they still help reduce errors and increase the speed of the exposure process.
2. 4 CCD Alignment Exposure Machines
4 CCD alignment exposure machines are designed for high-precision PCB exposure, particularly in applications that require extremely fine details and accuracy. These machines use four CCD sensors strategically placed to align the PCB with the photomask from multiple angles. The use of four sensors allows for more accurate real-time detection of any misalignment, making these machines ideal for complex and multilayer PCB manufacturing.
The primary advantage of using a 4 CCD alignment exposure machine is its ability to achieve extremely high levels of precision, often down to a few micrometers. This makes them perfect for high-density interconnect (HDI) boards, fine-pitch components, and other advanced PCB designs that demand exceptional accuracy.
By ensuring precise alignment, these machines reduce the chances of misalignment, which can result in production defects or errors in the circuit pattern. This level of precision enhances the overall quality and reliability of the finished PCBs, making 4 CCD alignment exposure machines a preferred choice for manufacturers of high-end electronics, including smartphones, wearables, and automotive devices.
3. CCD Automatic Alignment Double-Sided Exposure Machines
In the case of double-sided PCBs, exposure machines face an added challenge: the need to align both sides of the board accurately. Traditional exposure machines might struggle with this task, requiring manual adjustments to ensure the proper alignment of each side. However, CCD automatic alignment double-sided exposure machines solve this problem by using advanced alignment technology to expose both sides of the PCB with a high degree of accuracy.
These machines typically use CCD sensors to detect the alignment of the front and back sides of the PCB before exposure begins. They adjust automatically to ensure that both sides are perfectly aligned with the mask, reducing the risk of errors. This is particularly important in applications where precision is paramount, such as in the production of multi-layer or high-density interconnect (HDI) PCBs.
With automatic alignment, these machines save time by eliminating the need for manual alignment between the two sides. Additionally, they ensure that the patterns on both sides of the PCB are perfectly aligned, improving the overall integrity of the final product.
Key Advantages of CCD Auto Alignment Exposure Machines
1. High Precision and Accuracy
One of the primary advantages of CCD auto alignment exposure machines is their high level of precision. The CCD sensors are capable of detecting even the smallest misalignments and correcting them in real time. This is particularly important for high-density PCBs with fine traces and small components. The accuracy of alignment provided by these machines is a crucial factor in ensuring that the circuit patterns are transferred with minimal defects.
With a mechanical accuracy of ±15μm, these machines are capable of handling advanced PCB designs that require extreme levels of precision. This level of accuracy minimizes the risk of misaligned or defective circuits, reducing scrap and improving the overall yield of the production process.
2. Faster Production Speeds
The automation provided by CCD systems also leads to faster production speeds. Automatic alignment and exposure adjustments mean that operators spend less time on setup and correction. This efficiency is especially important for manufacturers who need to produce large volumes of PCBs quickly and accurately.
In particular, double-sided exposure machines with automatic alignment eliminate the time-consuming process of aligning the front and back sides of the PCB manually. By automating this process, manufacturers can significantly increase their throughput without compromising on quality.
3. Reduced Errors and Defects
Manual alignment in traditional exposure machines often leads to human error, such as misalignment or incorrect exposure. With CCD auto alignment, these errors are minimized or entirely eliminated, leading to a higher-quality PCB with fewer defects. In high-precision applications such as HDI or multilayer PCB manufacturing, the accuracy of CCD-based alignment systems ensures that the circuit patterns are correctly transferred, reducing the need for costly rework or scrap.
Additionally, the 4 CCD alignment exposure machine improves the overall accuracy of the exposure process by checking the alignment from multiple angles. This ensures that even the most intricate designs are accurately imaged onto the board, improving the overall quality of the finished PCB.
Conclusion
CCD Auto Alignment Exposure Machines have greatly enhanced the PCB fabrication process, offering precision, efficiency, and reliability for producing high-quality, complex PCBs. These systems provide an automated, accurate, and faster method of transferring circuit patterns, whether for single-sided or double-sided exposure. With various options available, such as semi-automatic, 4 CCD alignment machines, and automatic double-sided exposure machines, manufacturers can choose the best solution to suit their needs.
By improving accuracy, reducing errors, and increasing production efficiency, these machines help deliver high-quality PCBs that meet the demands of modern electronics. As the demand for smaller, more powerful electronic devices grows, CCD exposure machines will become even more essential in PCB fabrication. Investing in this technology allows manufacturers to stay competitive, reduce costs, and meet the high standards expected in today’s electronics market.
