In the rapidly evolving electronics manufacturing industry, precision and efficiency are critical factors for success. Among the various technological advancements, the Dry Film Auto Cutting Laminator has emerged as a transformative innovation in PCB (Printed Circuit Board) production. Developed for high-quality dry film lamination processes, this automated solution not only optimizes production efficiency but also ensures impeccable accuracy in applications such as PCB manufacturing. This research paper delves into the technology, applications, system specifications, and industry impact of the Dry Film Auto Cutting Laminator.
By focusing on key aspects such as automation, material specifications, and system integration, this paper provides a comprehensive overview of how this machine is reshaping the landscape of electronics manufacturing. Furthermore, we will explore its contributions to cost reduction, process optimization, and product quality enhancement.
For industry professionals looking to adopt advanced lamination systems, the Dry Film Auto Cutting Laminator offers a robust and reliable solution that meets the stringent demands of modern manufacturing environments. Let us explore its intricacies and evaluate its role in shaping the future of PCB production.
Technological Overview
Key Features and Functionalities

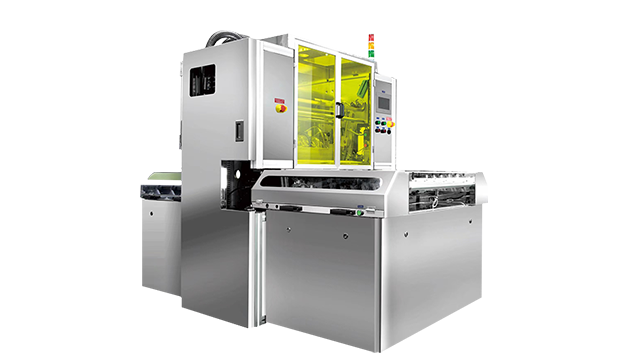

The Dry Film Auto Cutting Laminator is an automated machine designed specifically for applying dry film to PCB surfaces with high precision and efficiency. Key components include the film cutting mechanism, vacuum mechanism, temperature control system, and electronic control system. Each of these systems operates synergistically to ensure seamless lamination, reducing human intervention and errors.
Temperature Control: Equipped with an infrared temperature sensor and PID precision calculation system, the laminator achieves accurate temperature regulation through SSR controls.
Film Cutting Mechanism: A synchronous belt-driven system with high-speed brushless DC motors ensures precise cutting of dry films, tailored to the dimensions of each PCB.
Vacuum Mechanism: A segmented vacuum control system enhances stability during the lamination process by accommodating varying PCB specifications.
Automation: The PLC program controller combined with a human-machine interface streamlines operation while maintaining high accuracy in film application.
Material Specifications
The Dry Film Auto Cutting Laminator is compatible with a wide range of materials, making it versatile for different manufacturing requirements. Here is an overview of its material specifications:
Parameter
Specification
Membrane Width
250-650mm
Film Thickness
15-76μm
PCB Substrate Thickness
0.05-3.3mm
Outer Diameter of Membrane Roll
Ø80-Ø200mm
Production Capabilities
The laminator is capable of processing a significant number of PCBs per hour, depending on the size of the boards and other operational parameters. For instance:
Delivery Speed: Adjustable from 1.0 to 5.5 meters per minute.
Throughput: Can handle up to 496 PCBs per hour for smaller boards (300mm width).
Edge Accuracy: ±1mm for both leading and trailing edges.
Applications and Industry Impact
Applications in PCB Manufacturing
The primary application of the Dry Film Auto Cutting Laminator lies in PCB manufacturing, where it automates the lamination process for dry film application. This is particularly important in industries requiring high-density interconnects (HDI) and multilayer PCBs for devices such as smartphones, medical equipment, and automotive electronics.
Advantages in Modern Manufacturing
Adopting this advanced laminator offers several advantages:
Cost Efficiency: Reduces labor costs by automating manual processes.
Enhanced Precision: Ensures consistent quality by eliminating human errors.
Higher Output: Boosts productivity through faster processing speeds.
Material Savings: Optimizes film usage by minimizing waste.
Conclusion
The Dry Film Auto Cutting Laminator is a game-changing innovation in PCB manufacturing, offering unparalleled efficiency, precision, and adaptability to various production needs. By integrating automation and advanced material handling systems, it sets a new benchmark for quality and productivity in the industry.
For companies aiming to stay ahead in an increasingly competitive market, investing in cutting-edge technologies like this laminator is crucial. As demonstrated, its ability to streamline operations while ensuring high-quality outcomes makes it an invaluable asset for any electronics manufacturing facility.
Learn more about the features and capabilities of the Dry Film Auto Cutting Laminator by visiting our detailed product pages on Dry Film Auto Cutting Laminator or exploring other related solutions at Dry Film Laminators.
