Which all machines are used in the production of PCB?

The production of Printed Circuit Boards (PCBs) is a cornerstone of modern electronics manufacturing, enabling the creation of complex electronic devices that power our world. Understanding the various machines used in PCB production is critical for manufacturers aiming to optimize efficiency, reduce costs, and maintain high quality. Among these machines, the fully automated PCB laminator stands out as a key player in the process. This research paper aims to provide a comprehensive overview of the machinery involved in PCB production, focusing on their roles, functionalities, and benefits for manufacturers. Additionally, it highlights the importance of automation in modern PCB fabrication and how it contributes to achieving greater precision and scalability.

This study also delves into the technologies offered by Shenzhen Xinhui Technology Co., Ltd., a company specializing in advanced PCB equipment, including automated film laminators and exposure machines. Their innovative solutions reflect the industry's ongoing evolution toward automation and precision engineering. In this paper, we will explore the machines involved in PCB production while examining how tools like the fully automated PCB laminator streamline operations and elevate manufacturing standards.

Understanding PCB Production Machinery

PCB production involves a series of intricate steps, each requiring specialized machinery to ensure precision and consistency. These machines play distinct roles, ranging from material preparation to quality inspection. The core processes include material cutting, lamination, drilling, plating, and testing. Below, we explore the essential machines used across these stages.

1. Material Preparation

Material preparation is the first step in PCB production, involving the cutting and cleaning of raw materials such as copper-clad laminates. Machines used at this stage include:

• Cutting Machines: These are used to size the copper-clad boards according to design specifications.

• Cleaning Machines: Cleaning equipment ensures that the boards are free from contaminants before further processing.

2. Lamination

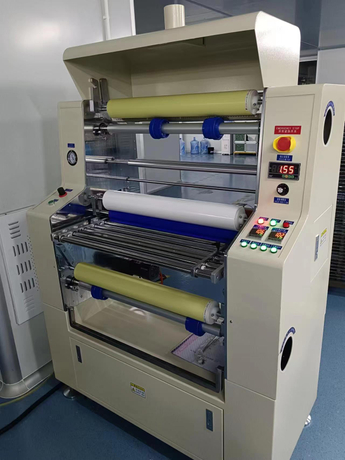

Lamination is a critical process where a dry film or solder mask is applied to the PCB surface to protect copper layers during etching. The fully automated PCB laminator is a sophisticated machine designed for this purpose. This equipment offers features such as:

• Automatic Film Cutting: Adjusts film size to match board dimensions.

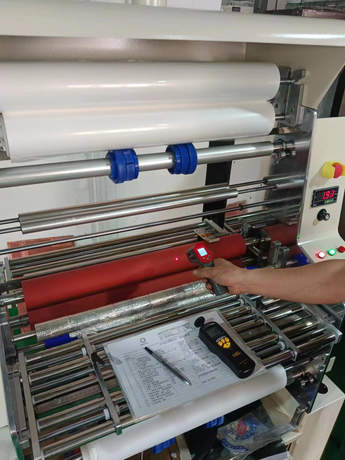

• Precision Temperature Control: Ensures uniform lamination quality through PID-regulated infrared heating systems.

• Vacuum Mechanism: Maintains stability during lamination to prevent defects.

Shenzhen Xinhui Technology Co., Ltd.'s laminators exemplify cutting-edge innovation in this domain, providing features that reduce manual labor and improve throughput.

3. Drilling

Drilling is another crucial step where holes are made for vias and mounting components. Advanced CNC drilling machines are employed for this purpose. These machines offer:

• High-Speed Drilling: Ensures rapid hole creation without compromising precision.

• Multi-Spindle Capability: Allows simultaneous drilling of multiple boards.

4. Electroplating and Etching

In this stage, copper is deposited onto drilled holes and board surfaces through electroplating, followed by etching to remove excess material. Key machines include:

• Plating Machines: Facilitate uniform copper deposition across the board.

• Etching Machines: Use chemical solutions to remove unwanted copper areas.

5. Testing and Inspection

The final stage involves testing the electrical functionality and inspecting for defects using Automated Optical Inspection (AOI) systems and flying probe testers.

• AOI Systems: Use cameras to detect defects such as misalignments or soldering errors.

• Flying Probe Testers: Test electrical connectivity without requiring a custom fixture.

The Role of Automation in PCB Production

Automation has transformed PCB manufacturing by reducing human intervention, improving precision, and scaling production capacity. Machines like the fully automated PCB laminator epitomize these advancements by incorporating technologies such as PLC programming, human-machine interfaces, and real-time monitoring systems.

The benefits of automation in PCB production include:

• Enhanced Efficiency: Automated systems can operate continuously, significantly increasing output.

• Improved Quality: Consistent processes lead to fewer defects and higher-quality products.

• Cost Reduction: Automation minimizes labor costs and material wastage.

Conclusion

The production of PCBs relies on a diverse array of machinery, each serving a specific function in creating reliable and high-quality circuit boards. From material preparation to final testing, every step involves precision engineering supported by advanced technologies. Among these machines, the fully automated PCB laminator stands out as a vital component, demonstrating how automation enhances efficiency and product quality.

Shenzhen Xinhui Technology Co., Ltd.'s contributions to this field underscore their expertise in providing state-of-the-art solutions for modern PCB manufacturing challenges. As the industry continues to evolve, manufacturers must adopt advanced equipment like the fully automated PCB laminator to stay competitive and meet growing market demands.
