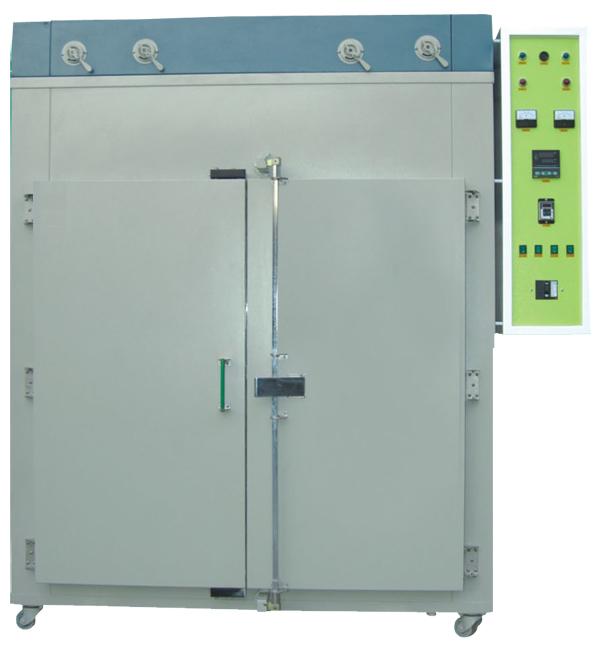

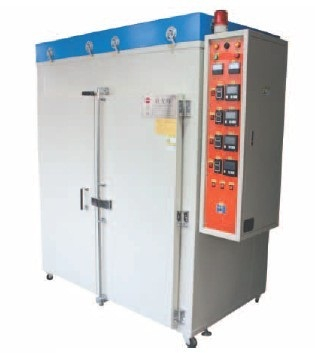

Application: PCB Baking
Power Specifications: AC380V 3P 50HZ 30KW
External Dimensions: Approx. H2200 × W2300 × D1200mm
Internal Dimensions: Approx. H1500 × W1500 × D950mm (with floor groove)
Baking Temperature Range: 50-200°C
Thermal Insulation Structure: Full mirror stainless steel inner chamber, glass fiber insulation, approx. 9cm thick
Airflow System: Vertical/horizontal circulating heated airflow for uniform temperature distribution
Electrical Protection: Equipped with overcurrent, short-circuit, and reverse-phase protection to prevent abnormal overheating caused by phase loss or power supply changes
Temperature Control System: Utilizes Omron temperature controller with high-precision PID auto-tuning and SSR control for accurate temperature regulation
Control System: Countdown heating with automatic power cut-off, audible/visual alarms, and indicator lights to notify operators
Over-temperature Protection: Dual over-temperature protection (built-in sensor in controller + independent sensor on oven top). Activation of either sensor cuts off heating and fan while triggering alarms
Airflow Design: Enhanced circulating system with individually adjustable intake/exhaust airflow
Key Features:
Digital PID controller with SSR ensures ±1.5°C temperature accuracy and low failure rate
Individual anomaly indicators for different fault types simplify troubleshooting and reduce maintenance time
